Lancaster: Petrol ,
Updated: January 2008

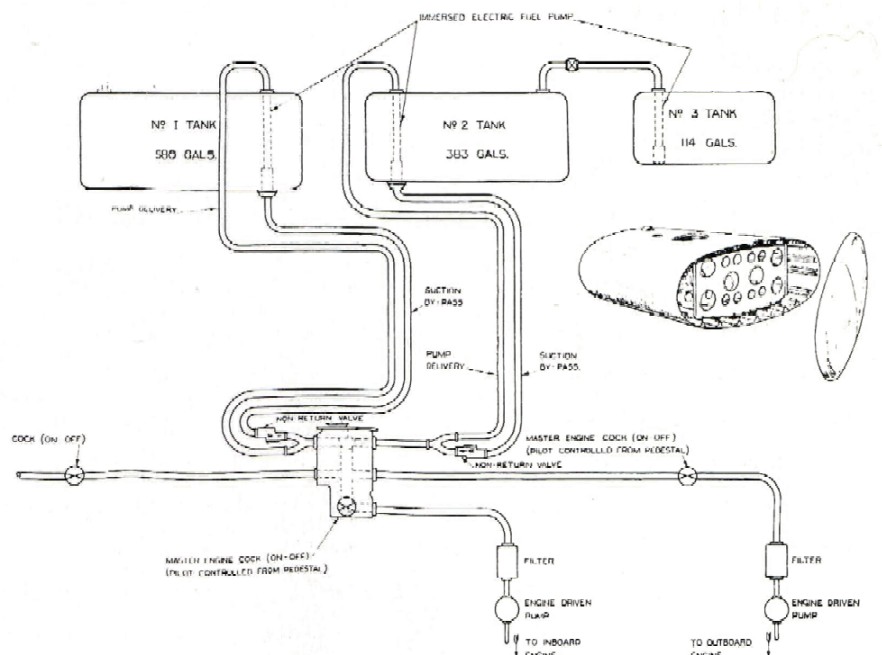

Petrol System
Capacity:
- 2,154 UK Imp. gal. (9,792 L) located in six (6) main tanks (three in each wing)
- No. 1 Tank holding 580 Imp. gal. (2637 L) located between the main fuselage and the inner engine.
- No. 2 Tank holding 383 Imp. gal. (1741 L) located between the inner and outer engines.
- No. 3 Tank holding 114 Imp. gal. (518 L) located in the wing tip.
Oil System
Capacity:
- 100 Imp. gal. (455 L) per engine

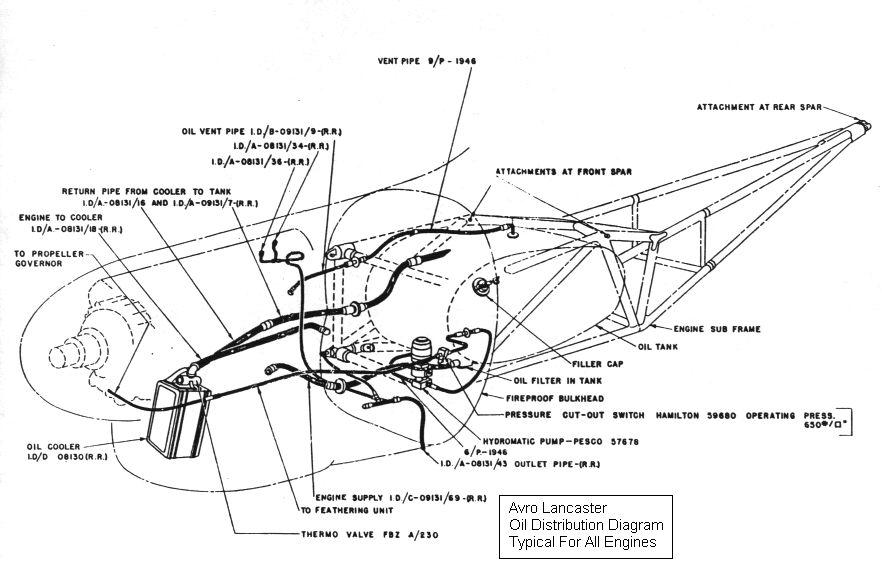

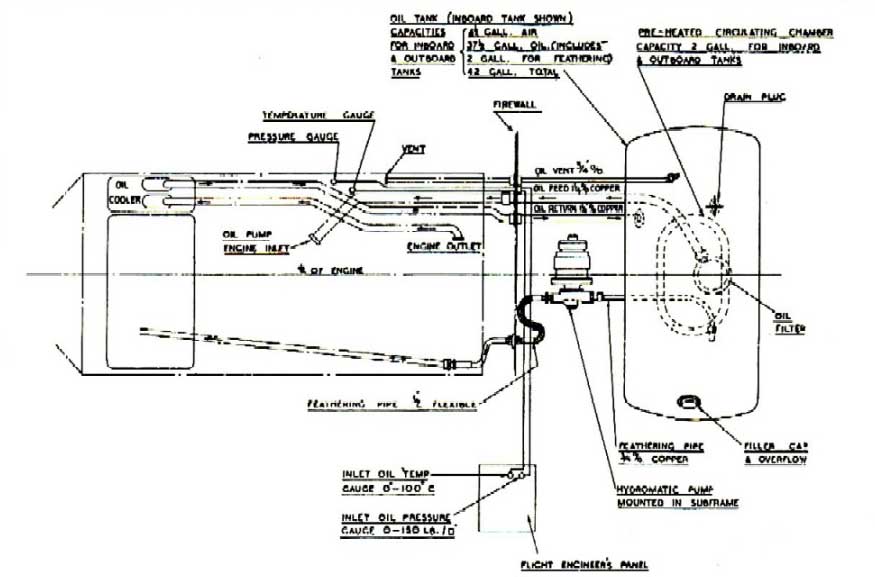

Oil Capacities and System Diagrams
